The floor-standing foot pedal heat sealer is the workhorse of medium-volume packaging operations across a remarkably wide
range of industries. Its combination of hands-free operation, scalable seal width, and standing-height ergonomics makes it the
default choice wherever a hand sealer is too slow and a fully automatic sealer is too expensive or inflexible.

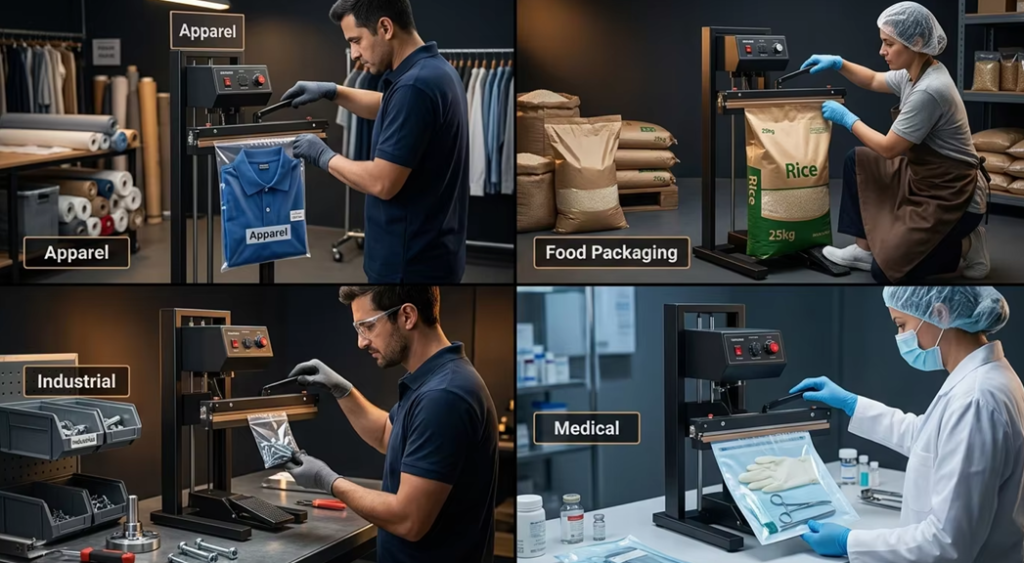

Industry Application Matrix
Apparel & Textiles The garment industry is the largest single user segment for foot pedal sealers. Individual garments, folded
sets, or packaged accessories are placed into poly bags that require two-handed positioning — one hand holds the garment
flat, the other smooths the bag mouth — making hand sealers impractical. Wide-bar models (400–600mm) handle standard
garment bags; extra-wide models (800–1,000mm) serve bedding, curtains, and bulk fabric rolls.
Typical bag: LDPE or OPP poly bags, 30–80μm
Recommended model: PFS-400 to PFS-600
Key feature: Wide bar, castor-wheel frame for floor repositioning between stations
Food Packaging — Dry & Semi-Dry Goods Snack foods, grains, dried fruit, coffee, spices, pet food, and baked goods all benefit
from foot pedal sealing at the packing station. The standing posture matches natural packing table ergonomics; the foot trigger
keeps hands on the product throughout. For food applications with freshness requirements, models with integrated date
coders ensure compliance with production date labeling regulations.
Typical bag: PA/PE, OPP, or kraft/PE laminate bags, 50–120μm
Recommended model: PFS-300 to PFS-500, with optional date coder
Note: For wet, marinated, or liquid food products, a chamber vacuum sealer is required — foot pedal sealers are for dry or
semi-dry products only
E-Commerce & Fulfillment High-volume order fulfillment operations — packing clothing, electronics accessories, cosmetics,
or general merchandise into poly mailers or flat bags — benefit enormously from foot pedal sealing at standing packing
stations. Throughput of 250–400 bags/hour per operator is achievable, versus 80–120 with a hand sealer. The floor-standing
height also integrates naturally with elevated packing tables common in fulfillment center design.
Typical bag: LDPE poly mailers, co-extruded PE bags, 50–100μm
Recommended model: PFS-400 with digital timer panel
Key advantage: Sustained 6–8 hour operation without operator hand fatigue
Industrial Parts & Hardware Fasteners, tools, small mechanical components, and electronic hardware are frequently
packaged in polyethylene bags for retail display or transit protection. Many industrial products have sharp edges or protrusions
that require careful two-handed bag loading — foot pedal trigger is essential. For metal parts, the optional anti-static bar
eliminates static charge buildup that attracts metal dust to bag surfaces.
Typical bag: HDPE or LDPE bags, 80–150μm
Recommended model: PFS-300 to PFS-400, optional anti-static bar
Key feature: Double seal bar for extra puncture-resistance at seal line
Medical & Pharmaceutical Supplies Non-sterile medical supplies, pharmacy packaging, first aid kits, and medical device
components requiring tamper-evident packaging use foot pedal sealers with stainless steel contact surfaces and documented
seal parameters. While certified sterile packaging requires specialized validated equipment, foot pedal sealers cover a broad
range of medical packaging applications where GMP documentation (not sterile validation) is the compliance requirement.
Typical bag: Medical-grade PE, PP, or Tyvek/PE laminate
Recommended model: PFS-400SS or PFS-600SS (stainless steel models)
Key feature: Documented seal width, temperature, and dwell time parameters for GMP records
Printed & Promotional Materials Booklets, brochures, product inserts, and promotional kits are frequently packaged in clear
OPP bags for retail or mailing. The combination of lightweight materials and high volume makes foot pedal sealing the
ergonomic and throughput-optimal choice. Cut-and-seal models (PFS-400CS) simultaneously seal and trim excess film,
eliminating a separate cutting step.
Typical bag: OPP or CPP, 20–40μm
Recommended model: PFS-300CS or PFS-400CS (cut-and-seal)
Key advantage: Single-step seal and trim reduces cycle time by ~30%
