Foot pedal sealers are widely available at a broad range of price points, and the external appearance of budget and
professional models is nearly identical. The quality differences are entirely internal and operational. Here is a complete buyer’s
checklist so you can make an informed decision before purchase — not after you’ve run the machine for two months.
The 6-Point Buyer’s Checklist

1. Transformer Material — The Most Critical Hidden Spec As with all impulse heat sealers, the transformer is the component
   that determines real-world lifespan. Pure copper windings run cooler, last 5–8 years, and support sustained high-frequency
   sealing cycles. Copper-clad aluminum or pure aluminum windings overheat after 30–50 consecutive seals and fail within 6–18
   months of commercial use.
   Ask the supplier: “Is the transformer wound with pure copper wire? What is the copper weight in grams?”
   Field test: After 100 consecutive seal cycles, feel the transformer housing. Pure copper runs warm; aluminum runs hot
   enough to be uncomfortable to touch.
2. Frame Rigidity & Stability The sealing arm must close with consistent pressure on every cycle. A flex or wobble in the stand
   frame means inconsistent jaw contact — producing seal lines that vary in width and bonding strength across the bar. Test by
   pressing the sealing arm down firmly by hand (with machine off) and observing whether the frame legs lift or rock.
   Minimum spec: 1.5mm wall thickness on main frame uprights; welded (not bolted) frame joints at stress points
   Red flag: Thin-wall frame tubes, bolted cross-braces that loosen over time, excessive arm wobble on contact
3. Cable or Linkage Quality The steel cable (or rod linkage) connecting the foot pedal to the sealing arm is a consumable — it
   stretches and wears with use. A quality cable uses braided stainless steel with swaged end terminals. Budget machines use
   single-strand wire with bare hook fittings that fray and snap.
   Check: Ask for the cable diameter (minimum 3mm braided) and the replacement cost and availability of the cable
   assembly
4. Timer Precision & Repeatability The dwell timer determines seal quality consistency. Mechanical dial timers with analog
   resistor control can drift ±20–30% over temperature cycles. Solid-state electronic timers maintain ±0.1s precision across the
   full operating temperature range.
   Minimum spec: Solid-state relay timer; ±0.2s or better stated accuracy
   Test: Set to 1.5 seconds and run 20 consecutive seals. Inspect seal lines under good lighting — consistent color and width =
   consistent timer. Variable or fading lines = timer drift.
5. PTFE Tape Width & Grade The PTFE tape covering the heating element determines non-stick performance and heat
   distribution. Narrow or low-grade PTFE tape causes film adhesion (bag sticks to element on release) and uneven seal lines.
   Minimum spec: PTFE tape width should match or exceed the stated seal width by 2–3mm on each side; grade should be
   0.13mm or thicker for commercial use
   Replacement cost: Confirm PTFE tape for your model is available locally or from the supplier within 2–3 business days — a
   machine without PTFE tape cannot operate
6. After-Sales Parts Availability The nichrome heating wire, PTFE tape, silicone backing pad, and foot pedal cable are all
   consumables with defined lifespans. Before purchasing, confirm:
   All consumables are standard-size and interchangeable with generic market parts
   The supplier can ship replacement consumables within 5 business days
   A full consumable kit (wire + tape + pad) is included with the machine at purchase

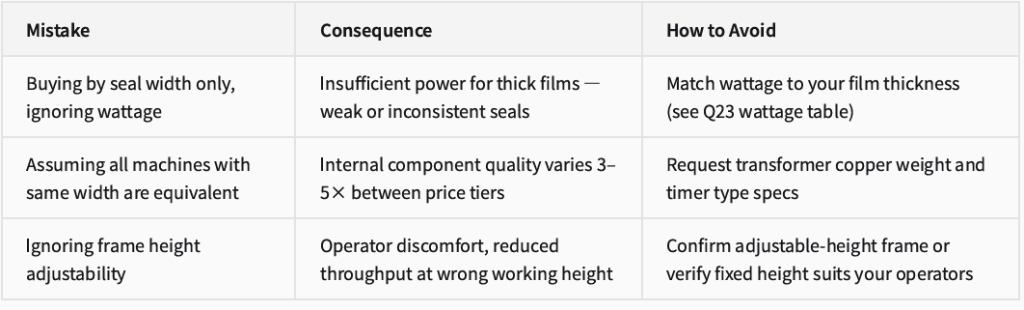

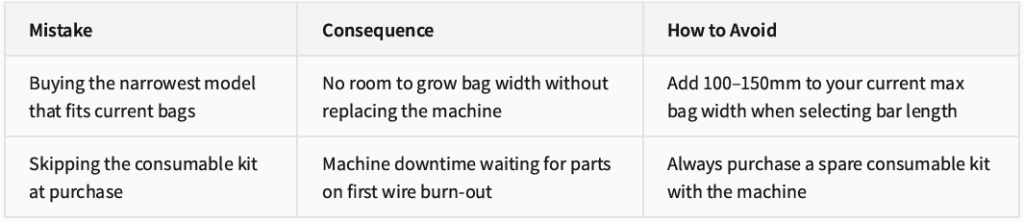

   Common Mistakes to Avoid

YGPACK’s Assurance for Foot Pedal Sealer Buyers

Every YGPACK PFS series machine ships with：

Certified pure copper transformer (copper weight stamped on transformer label)
Solid-state electronic timer (±0.1s accuracy)
Full spare consumable kit: 2× nichrome wire, 2m PTFE tape, 1× silicone pad
Height-adjustable frame with lockable castors as standard
12-month warranty on transformer and control circuit; lifetime consumables availability
Free pre-purchase specification consultation at xizila.com
